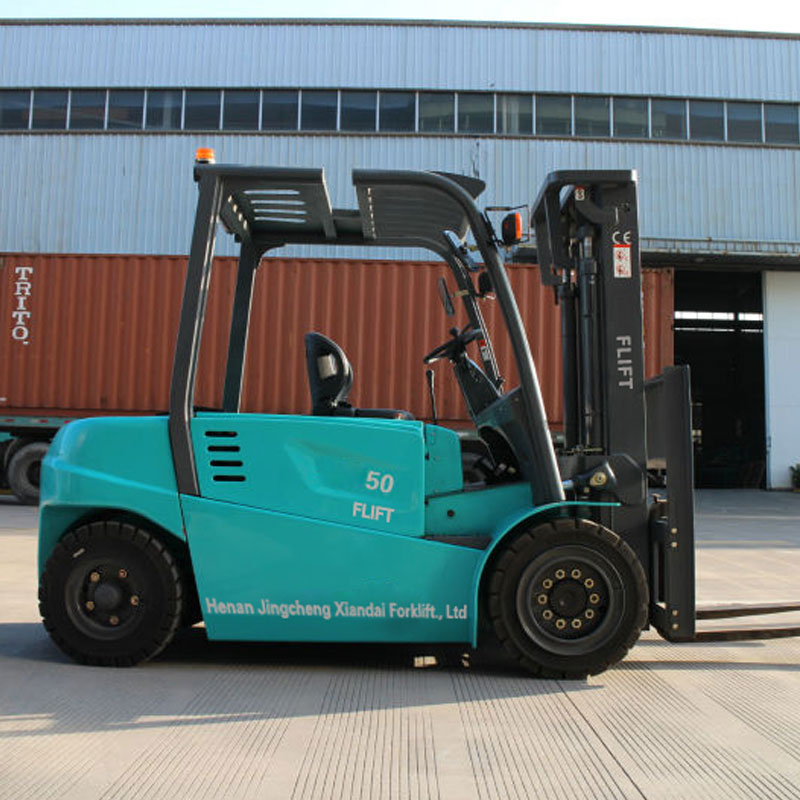

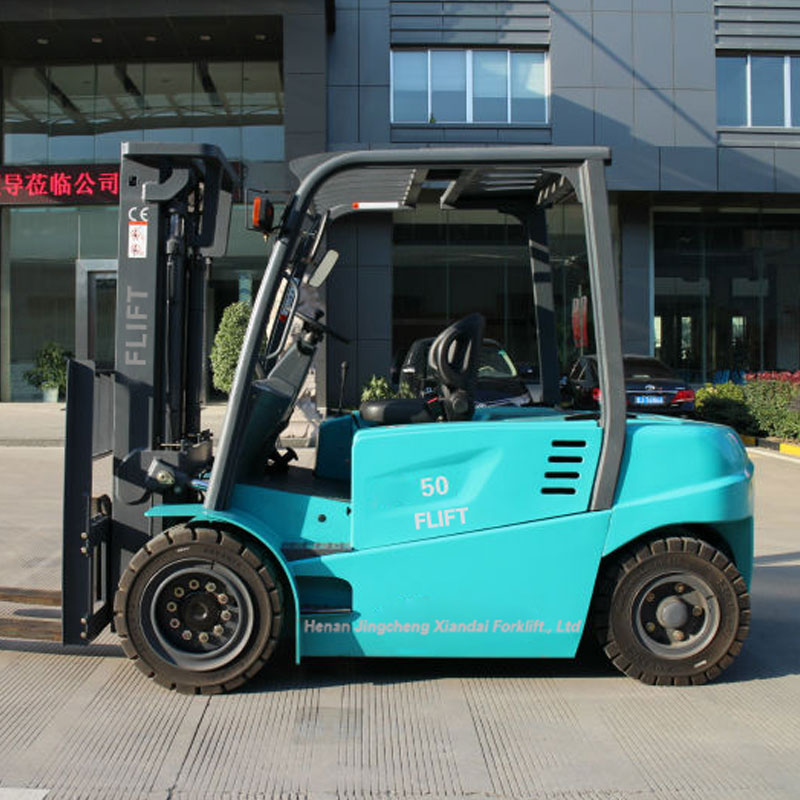

- 5 Ton Electric Forklift
- China hot sale best price 5 ton electric forklift trucks for sale with CE
|
Model |
|
FB50 |
|
Capacity |
kg |
5000 |
|
Load center |
mm |
500 |
|
Lift height |
mm |
3000 |
|
Fork size(LxWxH) |
mm |
1070x150x50 |
|
Mast tilt angle(F/R) |
Deg |
6°/9° |
|
Length to face of fork |
mm |
3030 |
|
Overall width |
mm |
1600 |
|
Mast lowered height |
mm |
2330 |
|
Mast extended height |
mm |
4255 |
|
Overhead guard height |
mm |
2255 |
|
Turning radius |
mm |
2755 |
|
Min right angle aisle width |
mm |
2955 |
|
Ground clearance |
mm |
160 |
|
Wheelbase |
mm |
2000 |
|
Travel (no load) |
km/h |
14 |
|
Lifting (full load) |
mm |
220 |
|
Gradeability(laden) |
% |
15 |
|
Service weight |
kg |
7800 |
|
Front tire |
|
28x12.5-15-24PR |
|
Rear tire |
|
7.00-12-14PR |
|
Battery (voltage/capacity) |
V/ah |
80/700 |
|
drive motor |
kw |
2x11 |
|
lift motor |
kw |
26 |
|
Controller manufacturer |
brand |
ZAPI/CURTIS |
FEATURES
1. Spacious workplace: Ample leg room helps to provide a relaxed working environment, keeping the operator relaxed and focused throughout the working day for maximum productivity.
2. Adjustable steering wheel and safety seat.
3. Humanized right-side hydraulic operation handle and emergency power-off button.
4. Super low non-slip pedal.
5. Full-view mast and fork carriage ensure operator`s excellent operation vision.
6. High-strength overhead guard.
7.The controller is directly fixed in the balanced weight to lead better hear dissipation.
8.Side cover can be quickly removed without any tools; Hood cover angle ≥90°，makes a convenient battery maintenance.
9.Waterproof, dustproof and shockproof LCD instrument.
10.Motor: side-mounted pump motor makes easier maintenance.
Applications
.jpg)
24-Month or 2,000 Work-Hour Warranty:
Your investment is protected for two years or up to 2,000 hours of operation on all major components, including the rugged frame, durable drive axle, high-strength wheels and rims, powerful brakes and brake pumps, responsive steering axle and steering cylinder, efficient hydraulic pump, precision speed limit valve, sturdy forks, as well as the lift and tilt cylinders, and advanced control valves.
12-Month or 1,200 Work-Hour Warranty:
For one year or 1,200 work hours, we cover essential systems such as the robust engine, reliable hydraulic gearbox, dependable battery, intuitive instrument panel, fan belt, all switches, both inner and outer friction plates, high-performance generator and starter, durable water tank, and the complete hydraulic pipeline.
We are committed to delivering unmatched customer service, offering competitive pricing, ensuring swift delivery, and providing a comprehensive range of top-quality products.
Your satisfaction is our highest priority.
